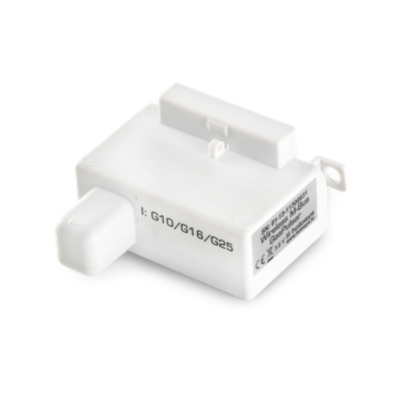

wM-Bus GasPulsar

IE COMM wM-Bus GasPulsar is a compact radio module used for collecting consumption readouts from Itron (G4-G25) and Elster (G4-G25) gas meters. Compact design with embedded “reed” sensor decreases number of necessary components which guarantees easier mounting and maintenance. Open Wireless M-Bus standard provides compatibility with devices from other manufacturers as well.

Features

Battery lifetime: up to 10 years (depending on the configuration)
Operating temperature: -20°C–80°C
Radio range: up to 800 meters
Possible synchronization with battery-powered radio repeater
AES128 encryption of radio telegrams to protect the message content
Protection type: IP67

Compact design: snap-in mount on Itron and Elster gas meters
Possibility to change AES128 passwords
Pseudorandom radio packet transmission to avoid synchronous collision
Sending: stored counter values at a specifc time (Due Date function), manipulation alarm information (Tamper), low battery alarm, remaining battery lifetime
Setting the serial number, MBus Unit , Medium values and Counter value
For the counter it is possible to set the multiplicator which determines the number of pulses that need to be counted
