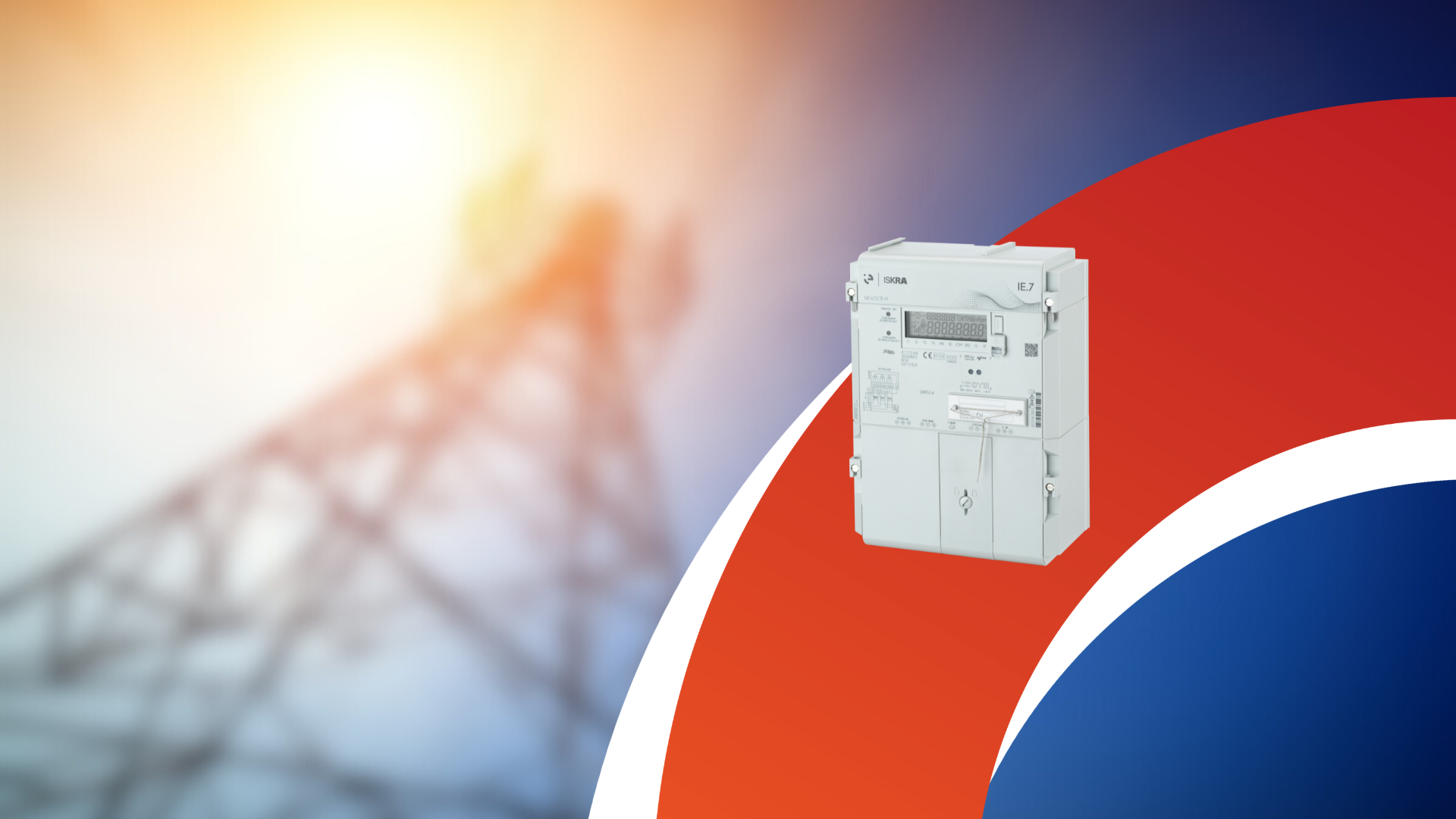

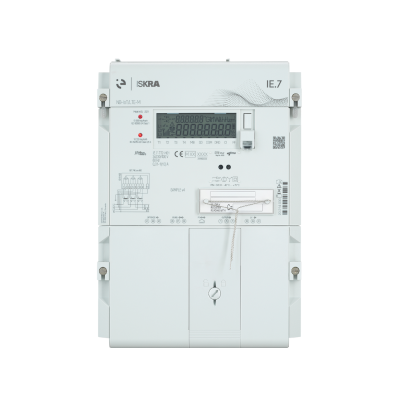

IE.7 Indirect three phase C&I smart energy meter

New IE.7 commercial and industrial (C&I) meters

Overcoming the limitations of traditional smart metering technologies. Ready for AMI 2.0.

Industry issues

Utilities are balancing revenue protection, customer service, and roadmaps for future applications while operating in a highly regulated, data-intensive environment. They also navigate problems with ageing infrastructure, energy losses and complex grid stability issues.

Key technical and operational challenges include:

Real-time grid visibility: consumption patterns, grid issues, power quality monitoring, fault detection, and tampering events.
Data integrity: identifying and resolving inconsistencies in metering data.
Data security: implementing advanced encryption and authentication mechanisms to protect critical data.
Connectivity: supporting various communication technologies
Demand response management (peak load management).
Active integration of renewables.
Customer engagement: dynamic pricing and energy conservation.

Overcoming limitations of traditional metering technologies

The increasing demand for diverse communication options at the metering point has driven the development of the new generation IE.7 and IE.7 RC meters.

The maturation of AMI technology has also enhanced metering efficiency with higher processing speeds and high-resolution data acquisition.

Building on insights from early smart meter deployments, the IE.7 integrates grid-edge computing and cellular connectivity, enabling real-time data processing and improved operational efficiency.

The IE.7 C&I meter offers enhanced data management, flexible configuration, seamless application integration, advanced energy management, and grid analysis capabilities.

Key features

IE.7 is our third generation smart meters, designed for industrial and commercial applications.

The primary function of these meters is to streamline data processing, ensure regulatory compliance, and support localized SCADA-like systems at the metering point.

These meters feature a modular communication design, supporting various protocols and enabling connectivity via the P1 (I1) coupler as well as a dedicated EDGE communication interface, designed for emerging energy sector services.

The meters are based on an advanced architecture derived from industrial and grid meters, providing a richer and better data management, deeper insights into power grid quality, additional functionalities for network monitoring and higher security.

Modular hardware design.
Modular firmware design.
High integration: Multi-utility, HAN, LAN, IO’s.
Support for latest communication technology:
- Cellular: (NB-IoT/2G/3G/4G/LTE-M/LTE-450 MHz)
- Ethernet / Fiber Optic (Dedicated customer channel (P1/RS485/M-Bus and wM-Bus).
Integrated yet Flexible I/O board to meet different customer requirements.
RTC backup options: Replaceable battery lasting up to 5 years or Supercapacitor lasting up to 7 days.
EDGE computing support.

Key benefits

Flexibility

With options for RTC backup, you can choose between a Supercap or a removable battery to best fit your operational requirements. The modular communication design allows easy swapping of communication modules. Additionally, the I/O configuration is highly customizable, offering a variety of input and output options tailored to different use cases and specific customer requirements.

Scalability

IE.X seamlessly scales to meet diverse power quality and grid monitoring needs, providing extensive features that support both small-scale and large-scale deployments. The meter can be configured with DIN-connected terminals for straightforward installations or with a dedicated variant for transformer monitoring, utilizing external Rogowski coils.

Connectivity

IE.7 offers robust connectivity options with support for over four communication channels. It can leverage cellular technologies via exchangeable communication modules or utilize on-board interfaces, including Ethernet, RS485, P1, or M-Bus.

Security

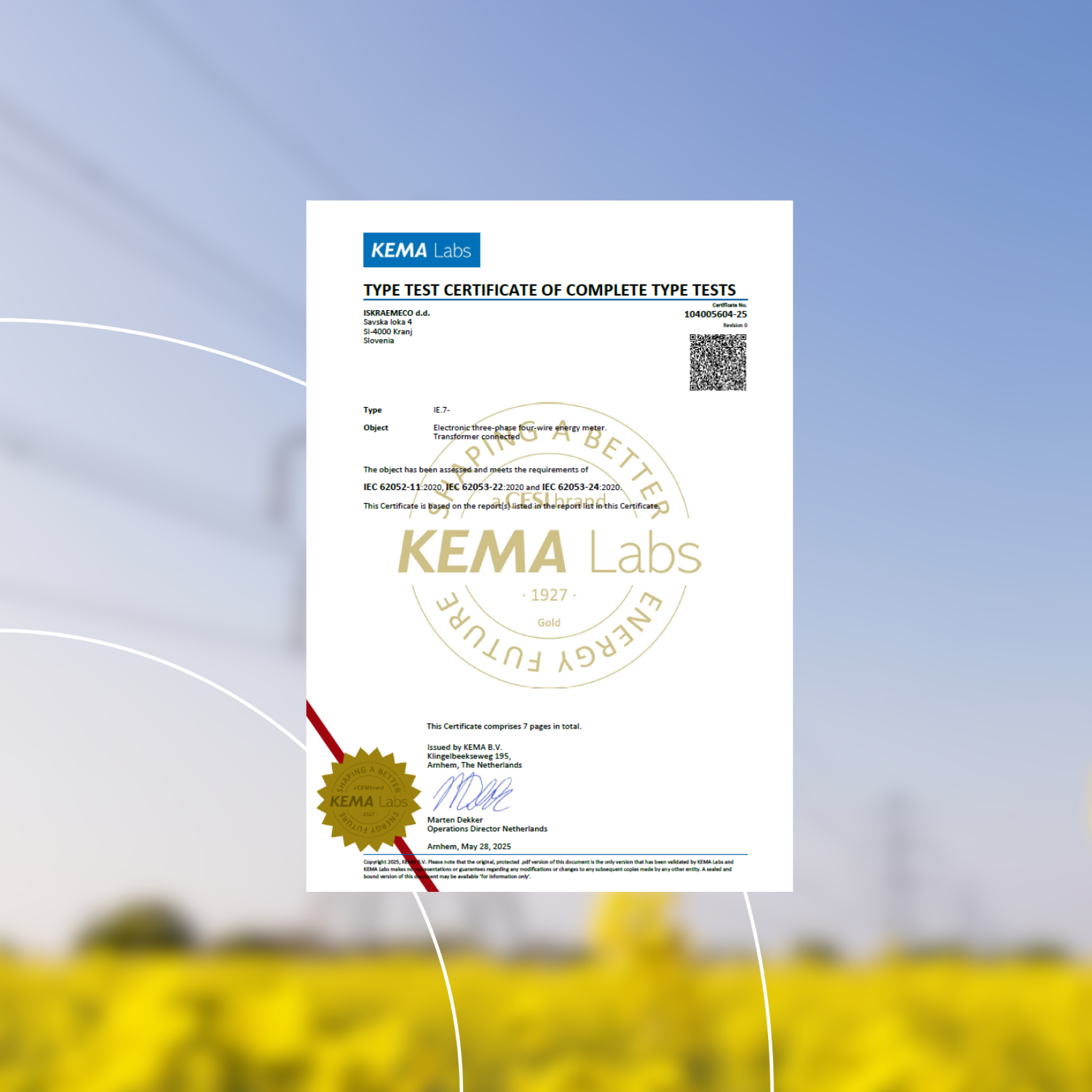

IE.7 meters fully comply with European and national legislation requirements, ensuring robust security at both physical and logical levels.

Sustainability

The development of the new IE.7 meter aligns with the company’s “One planet design” strategy, embodying the principles of the circular economy. We have reduced the product’s carbon footprint, innovated the materials used, and achieved a reduction in the meter’s own energy consumption compared to previous generations.

Upgraded with eIoT EDGE compute module

The eIoT EDGE compute module upgrades smart meters, transforming them into data sources for various applications. The platform design is open-source, allowing end users and system integrators to develop their own applications and customize both software and hardware. This provides greater flexibility and enables seamless integration into various IoT ecosystems.

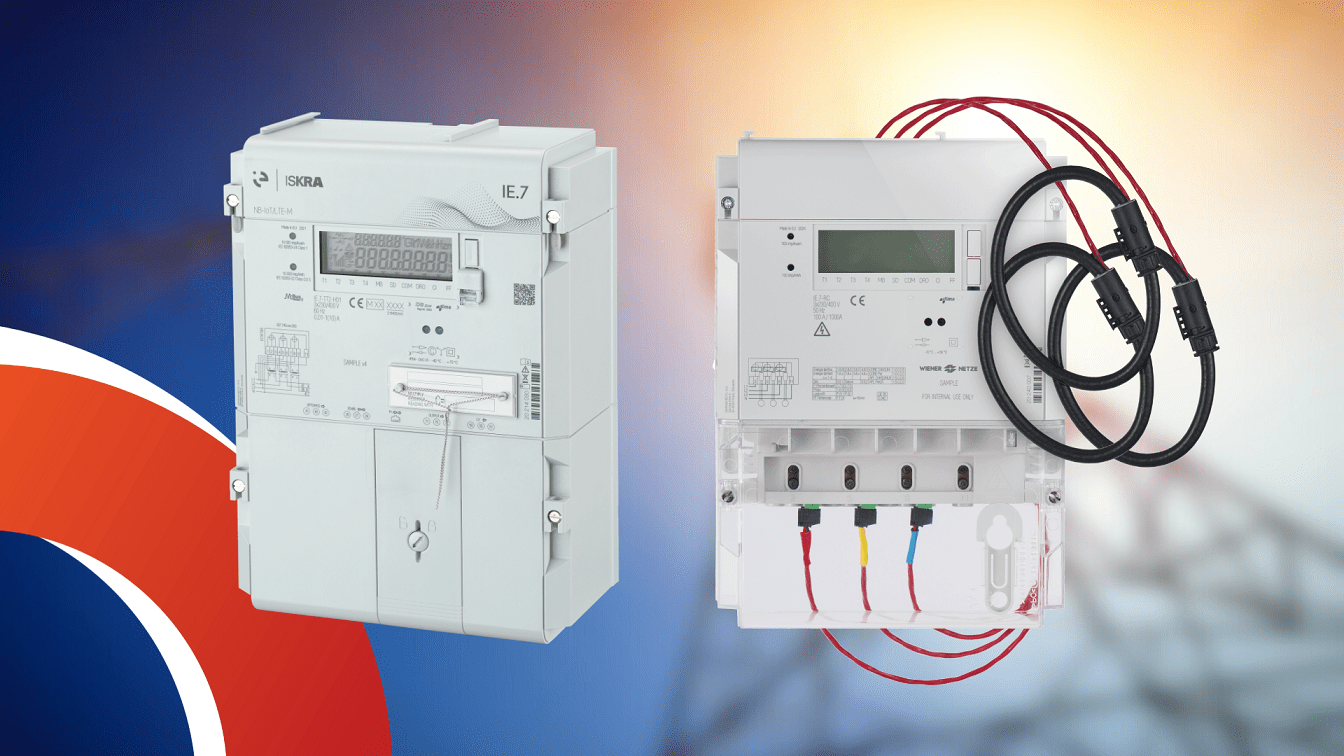

The new generation of C&I meters

01

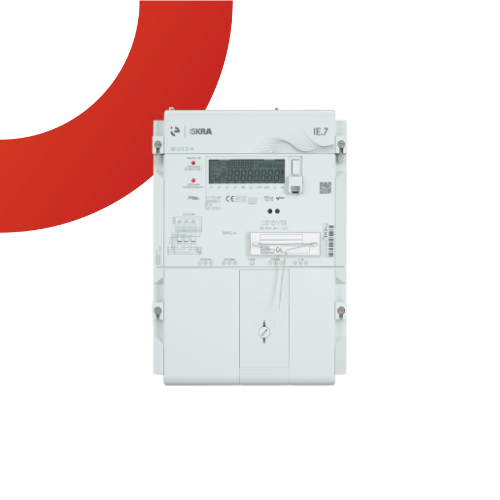

IE.7

A commercial and high-consumption meter

02

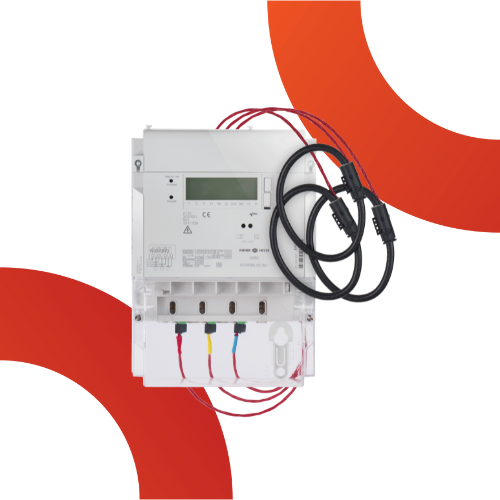

IE.7 RC

A retrofit grid monitoring solution

Discover the new IE.7 RC

03

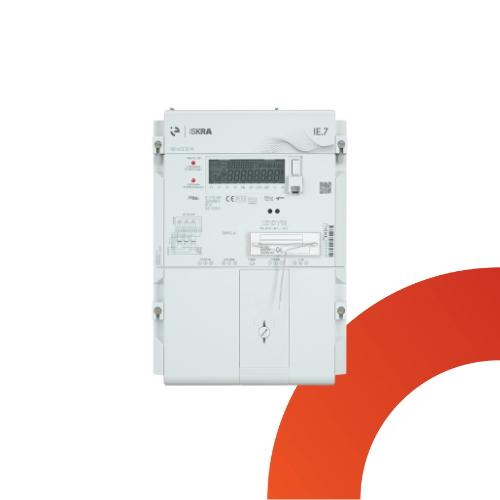

IE.7 CT/VT

A high-end commercial and industrial meter

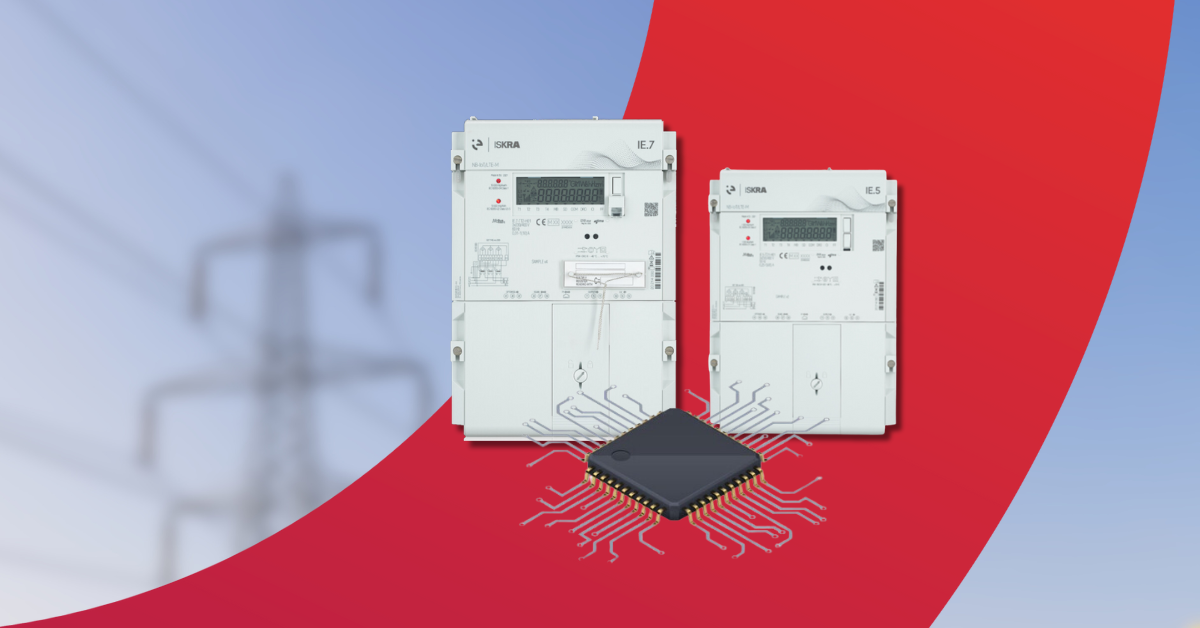

The base for AMI 2.0 – award-winning eIoT modular metering platform

The eIoT platform goes beyond mere kWh measurement, as it acts as the foundation of smart services and transforms the meter into a multifunctional device: meter, network analyzer and unit for additional applications and services (energy management, photovoltaics, lighting …).

The platform improves the third generation of IE.X smart meters, enables better data management, additional functionalities for network monitoring and higher security.

The EDGE module enables the development of innovative monitoring and control systems, such as smart lighting and other IoT applications.
